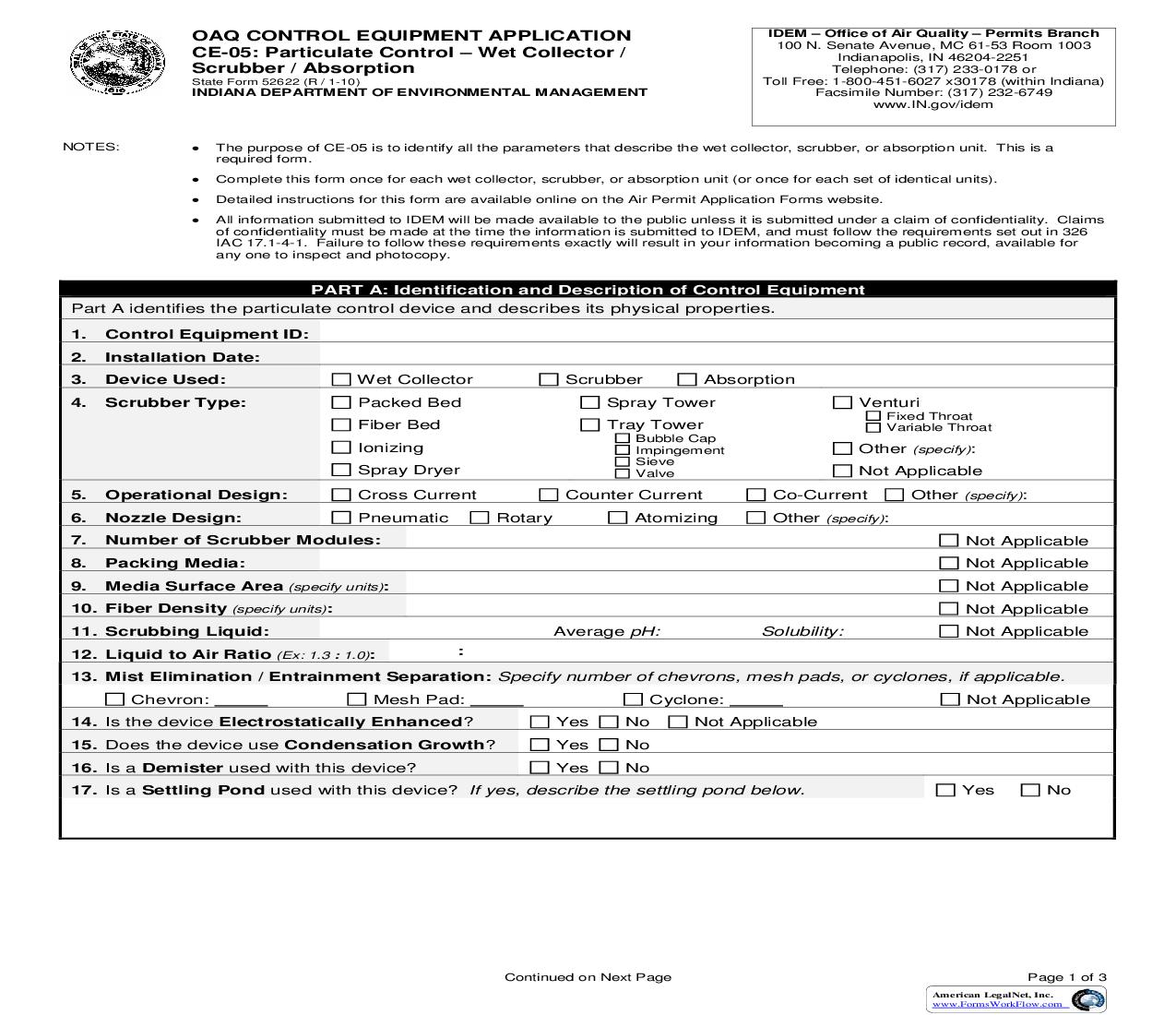

PARTICULATE CONTROL EQUIPMENT: Wet Collector, Scrubber, or Absorption Unit ­ INSTRUCTIONS Microsoft Word version of CE-05 Adobe PDF version of CE-05 The purpose of CE-05 (state form 52622) is to summarize all of the physical and operational parameters of a wet collector, scrubber, or absorption unit used to control particulate emissions. Complete this form once for each control device (or once for each set of identical control devices). CE-05 is a required form for submitting information about a wet collector, scrubber, or absorption unit to IDEM, OAQ. For the purposes of this form, the term "source" refers to the plant as a whole and NOT to the individual emissions units. If you have any questions, contact the Air Permit Reviewer of the Day (PROD) at (317) 233-0178 or 1-800-451-6027 extension 3-0178 (toll free call within Indiana). Part A: Identification and Description of Control Equipment Part A identifies the particulate control device and to describe its physical properties. 1. Control Equipment ID: Provide the identification number for each device used to control or limit air pollutant emissions. The identification numbers listed on this form should correspond to the emissions unit identified on the Plant Layout diagram and Process Flow diagram. 2. Installation Date: Specify when the control equipment was installed. At a minimum, the month and year of installation is required. 3. Device Used: Specify the type of device used to control air pollutant emissions. 4. Scrubber Type: If a scrubber is used, specify the type of scrubber. 5. Operational Design: If a scrubber is used, specify the operational design. 6. Nozzle Design: If a scrubber is used, specify the design of the nozzles. 7. Number of Scrubber Modules: If a scrubber is used, specify the number of scrubber modules used. 8. Packing Media: Briefly describe the packing media used to control air pollutant emissions. 9. Media Surface Area: Specify the total surface area of the packing media, and provide appropriate units of measure. 10. Fiber Density: Specify the density of the absorption fiber, and provide appropriate units of measure. 11. Scrubbing Liquid: If a scrubber is used, specify the liquid used for scrubbing. 12. Liquid to Air Ratio: If a scrubber is used, provide the liquid to air ratio for the control device (e.g., 1.3 : 1 = 1.3 cubic feet of water per 1 cubic foot of gas). 13. Mist Elimination / Entrainment Separation: If applicable, specify the type and number of mist elimination or entrainment separation devices. 14. Is the device Electrostatically Enhanced? Specify whether or not the control device is electrostatically enhanced. 15. Does the device use Condensation Growth? Specify whether or not the control device uses condensation growth. 16. Is a Demister used with this device? Specify whether or not the control device uses a demister. American LegalNet, Inc. www.FormsWorkflow.com 17. Is a Settling Pond used with this device? Specify whether or not the control device uses a settling pond, and describe the settling pond if applicable. Part B: Operational Parameters Part B provides the operational parameters of the control device and the pollutant laden gas stream. Appropriate units must be included if the standard units are not used. 18. Scrubbing Liquid Flow Rate: Provide the volumetric flow rate of the scrubbing liquid prior to entering the control device, after leaving the control device, and include the calculation of the difference in flow rate between the inlet and outlet of the device. You must also include the units for flow rate. Liquid flow rates are typically provided in gallons per minute (GPM). 19. Recirculation Liquid Flow Rate: Provide the volumetric flow rate of the recirculation liquid prior to entering the control device, after leaving the control device, and include the calculation of the difference in flow rate between the inlet and outlet of the device. You must also include the units for flow rate. Liquid flow rates are typically provided in gallons per minute (GPM). 20. Gas Stream Flow Rate: Provide the volumetric flow rate of the gas stream prior to entering the control device, after leaving the control device, and include the calculation of the difference in flow rate between the inlet and outlet of the device. You must also include the units for flow rate. Air flow rates are typically provided in actual cubic feet per minute (acfm). 21. Gas Stream Temperature: Provide the average temperature of the gas stream prior to entering the control device, after leaving the control device, and include the calculation of the difference in temperature between the inlet and outlet of the device. You must also indicate the temperature scale used. Air stream temperatures are typically provided in degrees Fahrenheit (°F). 22. Gas Stream Pressure: Provide the pressure applied to the gas stream prior to entering the control device, after leaving the control device, and include the calculation of the difference in pressure between the inlet and outlet of the device. You must also include the units of pressure. Air pressure is typically provided in inches of water (in H2O) or pounds per square inch (psi) or millimeters of mercury (mm Hg). 23. Moisture Content: Provide the moisture content of the gas stream prior to entering the control device, after leaving the control device, and include the calculation of the difference in moisture content between the inlet and outlet of the device. Moisture content is typically provided as a percent (%). 24. Average Particle Size: Provide the average size range of the particulates in the gas stream prior to entering the control device, after leaving the control device, and include the calculation of the difference in size range of particulates between the inlet and outlet of the device. Particulate size range is typically provided in micrometers (m). 25. Other: Specify any other parameter of the control device, and provide the appropriate value for the parameter prior to entering the control device, after leaving the control device, and include the calculation of the difference between the inlet and outlet of the device. Specify the units of measure used for the control device parameter. Part C: Pollutant Concentrations Part C provides the operational parameters of the particulate control device and the pollutant laden gas stream. Appropriate units must be included if the standard units are not used. 26. Units: For each pollutant controlled, provide the units
